Earthing Material
Hon tower can provide different Earthing materials according to customer's requirements.
Earthing material:
1.Ground Rods
1).Copper-Bonded Ground Rods
Copper Clad Steel Ground Rod, Pointed
Copper Clad Steel Ground Rod, Sectional
2).Stainless Steel Ground Rods
Stainless Steel Ground Rod, Pointed
Stainless Steel Ground Rod, Sectional
3).Solid Copper Ground Rods
Copper/Brass Ground Rod, Pointed
Copper and Stainless Steel Ground Rod
4).Galvanized Ground Rods
Galvanized Steel Ground Rod, Pointed
5).Chemical Ground Electrodes
Chemical Ground Electrode
Electrolytic Ion Grounding Electrode
2. Grounding conductors

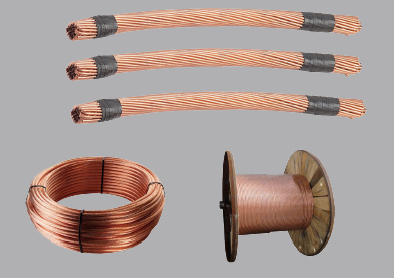

1).Copper Clad Steel Round Wire
2).Copper Clad Steel Stranded Wire
3). Bare Copper Stranded Wire
eg. 16mm2/35mm2/50mm2/70mm2 bare copper cable
4).Insulated Y/G PVC Copper Stranded Wire
eg. 16mm2/35mm2/50mm2/70mm2 insulated Y/G copper cable
5).Tape Conductors
Bare Copper Tape ,eg. 25*3 copper belt,
Bare Copper Bus Bar
Copper Clad Steel Flat Bar
Galvanized Steel Flat Bar
6).Wire Braid
Copper Wire Braid
Tinned Copper Wire Braid
7).Aluminum cable
eg. 16mm2/35mm2/50mm2/70mm2 Aluminum cable
3. Earth Clamps
A/G/D Clamp
Tape Clamp
Cross Clamp
U Clamp
Split Bolt
Copper Lug
C Clamp
Lightning Conductor Holder
4. Other Earthing Material
1). Busbars
2). Lightning Arrester
3). Ground Enhancement Material
4). Earthing Pit
